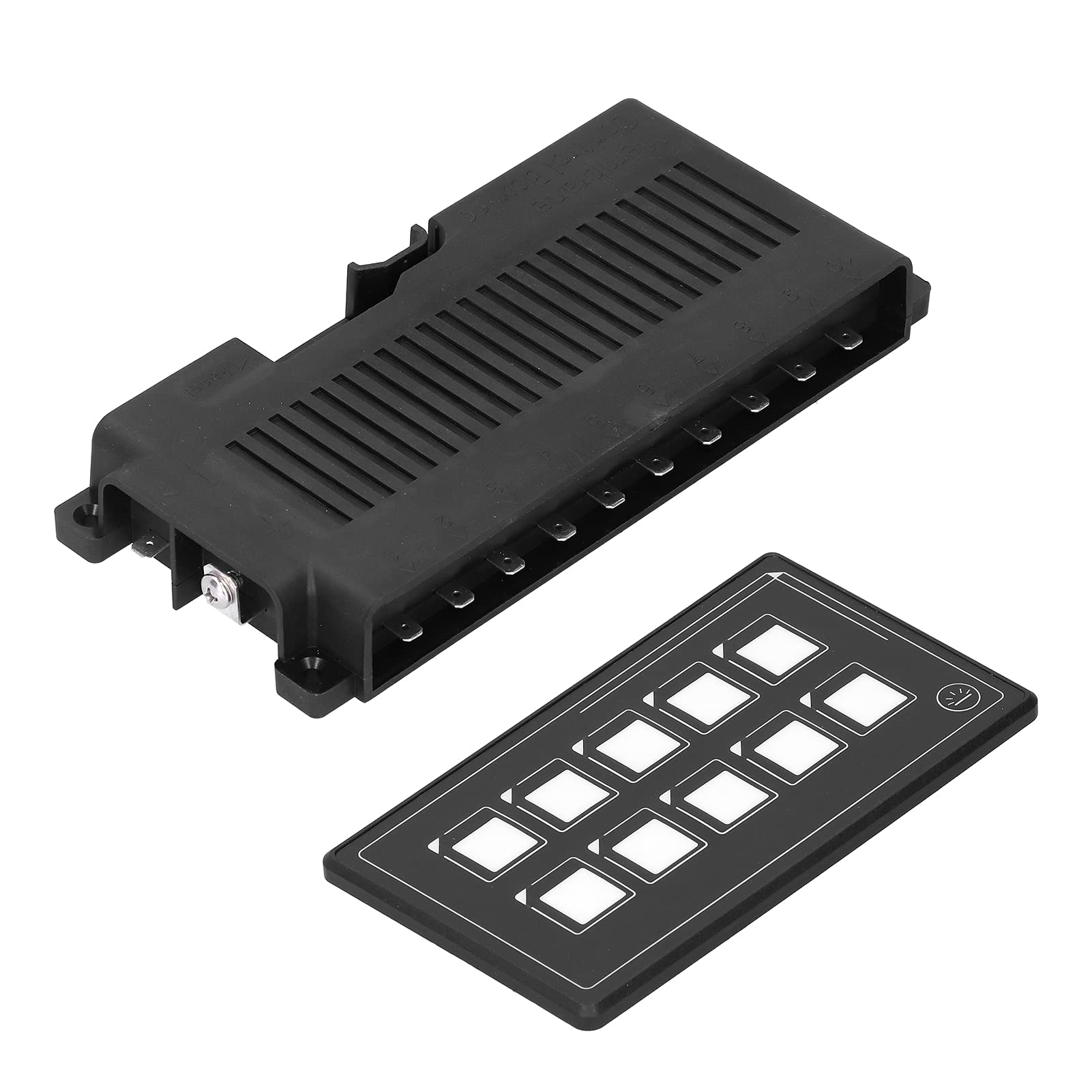

Waterproof Membrane Switch Panel with PPTC Protection & Backlight - Control Module for Horn, Wiper in RV, Boat, Marine & Automotive Applications

Feature:1. All buttons can be programmed as reset buttons, and the reset function is usually used in horn or wiper applications.2. The panel can also be remotely controlled via a mobile application (for Android/for iOS system).3. The backlight module design is used to facilitate the operation in the dark. With 60pcs various graphics and text label stickers for easy identification.4. Compact panel size, small drilling, easy to install, save space. Flexible wiring, the relay box can be installed at a distance of 1 meter from the touch screen.5. IP67 waterproof rating, can protect the panel in the case of temporary water immersion.Specification:Item Type: Control Switch Panel Material: PlasticCircuit Protection: Built-in Resettable Fuse(PPTC)Switch Ratings: 10A per branch circuitMaximum Cumulative Current: 60ARated Voltage: DC 11-30VWaterproof: IP67 (only Membrane Panel)Power Terminals: M5 stud size terminalsLoad Terminals: 250 quick terminals(male)Color: BlackHow to Use:Buttons 1-10 (can be customized in the settings)Switch between different control boxesCurrent disconnected device/connected statusSystem voltage monitorSet up Package List:1 x Switch Panel 1 x Controller1 x Sticker1 x Data Connection Cable1 x Manual 4 x Screws1 x Insulated Terminal 1 x Wire Terminal 1 x Terminal 1 x Touchpad1 x Cable Tie
